生成tls证书

mkdir /certs
openssl req -x509 -nodes -newkey rsa:2048 -keyout /certs/server-key.pem -out /certs/server-cert.pem -days 365 -subj "/CN=test.maxscale.com" && openssl req -new -x509 -key /certs/server-key.pem -out /certs/ca-cert.pem -days 365 -subj "/CN=test.maxscale.com"
chown -R maxscale:maxscale /certs

更改配置文件

vim /etc/maxscale.cnf

[maxscale]
admin_host=0.0.0.0
admin_ssl_key=/certs/server-key.pem
admin_ssl_cert=/certs/server-cert.pem
admin_ssl_ca_cert=/certs/ca-cert.pem

重启服务

systemctl restart maxscale

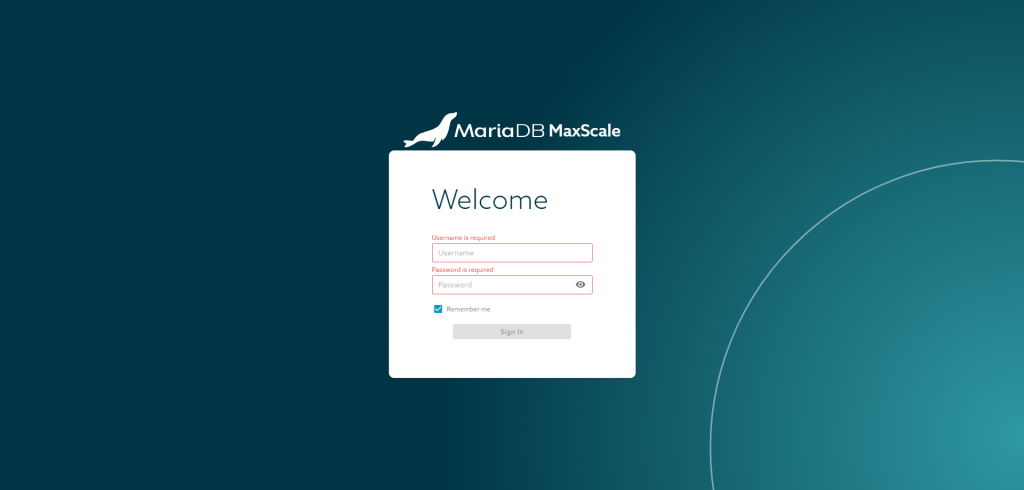

访问8989端口，默认账户:密码

admin:mariadb

删除默认账户，增添新账户

maxctrl create user wakamizu wakamizu --type=admin
maxctrl destroy user admin

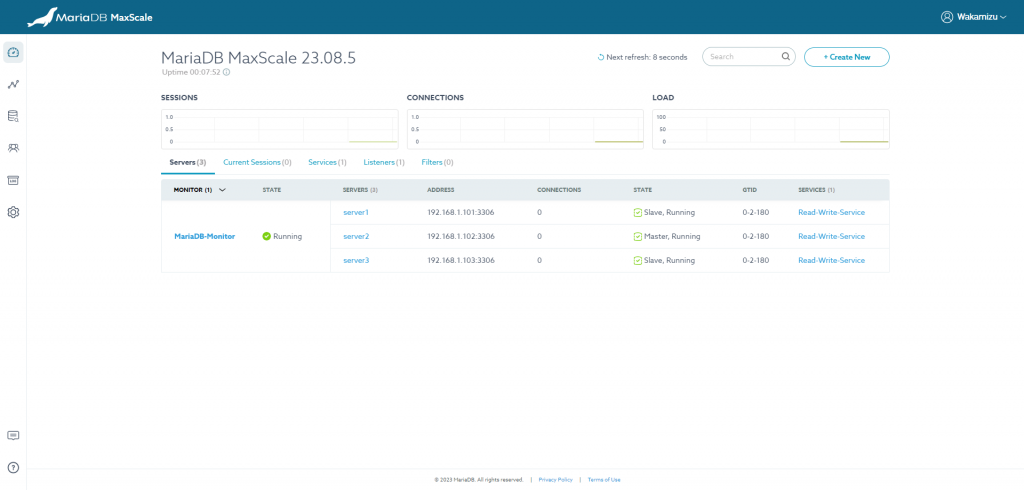

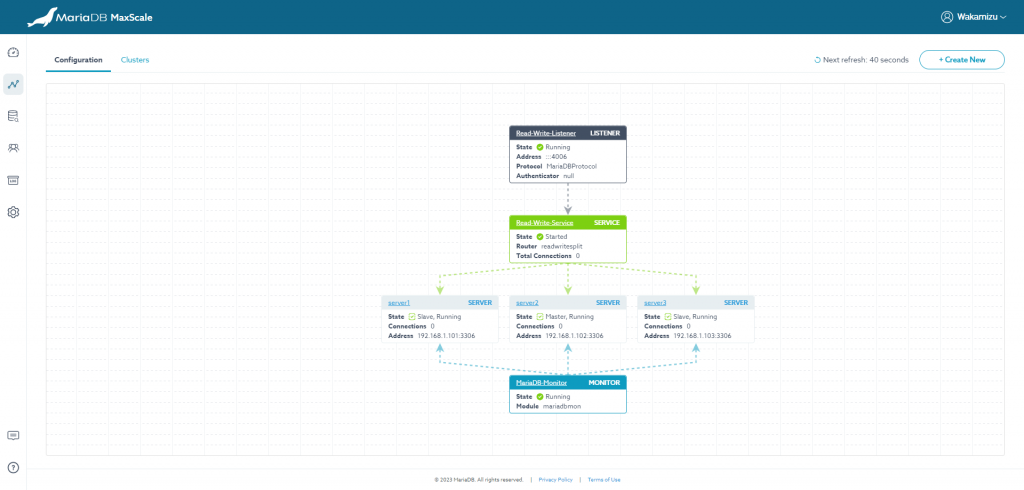

接下来就可以进行各种可视化管理啦
